Continuous louvre system
Linius is a horizontal cladding system in aluminium with a contemporary look and hihg quality. It gives the building attractive architectural features.
Durable and stylish façade cladding manufactured with light-weight aluminium profiles that are easy to clean and barely requires any maintenance.
By nature, aluminium generates a natural oxide coating that makes it very corrosion-resistant. In addition, aluminium has resistance against UV radiation and can easily resist temperature variations. Various types of surface treatments improve its corrosion resistance even further.
Find your product!
THE BENEFITS OF A RENSON Continuous louvre system
A Renson Linius homlokzatburkolati rendszer többféle célt szolgál. A legszembetűnőbb a vizuális takarás, amely egyúttal védi a homlokzatot az esőtől, a kártevőktől, a madaraktól vagy a zajtól. Ugyanakkor lehetővé teszik a levegő átáramlását. Az akusztikus lamellákkal ellátott homlokzatok ideális megoldást nyújtanak a zajforrások leárnyékolására. segítségével a nyílászárók kinyitása nélkül is természetes szellőzést érhetünk el otthonunkban. A lamellák vízszintesen futnak, ezáltal biztosítják a maximális légáteresztést.
Main features of a continuous louvre system:
- SCREENING
Ideal solution to hide constructions from view. - Ventilation
It allows the air flow in and out of a building whilst restricting the entry of rain. - Screening against the weather:
The continuous louvres system protects your installation from wind, rain and vermin. - Acoustics:
The structure of the louvres system together with the noise damping qualities ensure that noise is strongly damped, while keeping good ventilation. - Aesthetic cladding
Applications in which the blade profile design is preferred to other applications. - Interior:
Interior cladding, possibly incorporating back lighting.
Different types of Continuous louvre system
You can choose from many blade types according to shape, dimension or extra features.
- Integrated Insect mesh (IM)
- High Airflow feature (HF)
- Acoustic blades (AC)
- High Voltage (V)
- Weatherable blade (W)
- Closed blades (CL)
- Blades with large free area for aesthetical purposes (WS)
Types of special blades
Blades packed with inorganic mineral wool for acoustic performance. Developed to provide an aesthetic solution for noise reducing continuous louvre applications.
You can find a variety of support elements and structures to make the installation easier. Your choice depends on your unique demands.
Many technical data help you to find the suitable wall cladding structure for your project. Do not forget the extra options like water repellant style, insect mesh or acoustic features if needed.
| Type | Pitch (mm) |
Blade height (mm) |
Miscellaneous features |
| L.033.01 | 33,3 | 37,5 | basic type |
| L.033V | 33,3 | 37,6 | High Voltage |
| L.033CL | 33,3 | 38,2 | Suitable for fully or partially closed continuous louvre systems |
| L.033IM1 | 33,3 | 38,2 | Integrated insect mesh |
| L.050.00 | 50 | 56 | basic type |
| L.050HF | 50 | 50 | High Airflow feature |
| L.050CL | 50 | 60 | Suitable for fully or partially closed continuous louvre systems |
| L.050W | 50 | 89,6 | Water-resistant blades |
| L.050WS | 50 | 50,5 | Blades with large free area for aesthetical purposes |
| L.060AC | 60 | 69 | Acoustic blades |
| L.060HF | 60 | 60 | High Airflow feature |
| L.066.01 | 66 | 76,5 | basic type |
| L.066CL | 66 | 76,5 | Suitable for fully or partially closed continuous louvre systems |
| L.066IM1 | 66 | 76,5 | Integrated insect mesh |
| L.066V | 66 | 74 | High Voltage |
| L.075HF | 75 | 76,5 | High Airflow feature |
| L.075W | 75 | 101 | Water-resistant blades |
| L.120.01 | 120 | 120 | basic type |
| L.150DAC | 150 | 150 | Acoustic blades |
| L.170DAC | 170 | 170 | Acoustic blades |
INSTALLATION of Wall continuous louvre system
L033 type
L033 type
L050 type
L050 type with insect mesh
L060 type
L050 type
L066 type
L066 type horizontal system
L075W type
L075HF type
L120 type
L120 típus
L150 típus
L150 type
L170 type
L170 type
Finishing of Continuous louvre system
By nature, aluminium generates a natural oxide coating that makes it very corrosion-resistant. In addition, aluminium has resistance against UV radiation and can easily resist temperature variations. Various types of surface treatments improve its corrosion resistance even further. Anodisation or Powder-coating can be applied to improve durability. The result is that besides cleaning, aluminium does not require any maintenance or repair of its surface finishing.
Easy maintenance of the continuous louvre system
Details about the necessary cleaning frequency and methods can be found in the warranty terms and conditions.
Installation of blades
The continuous louvre system consists of extruded aluminium mullions on which the blade supports and blades are fixed. Enjoy the quick installation, using clasped blades and simple clasping system. Renson® has even developed a curved assembly system. The blades are rain repellant thanks to their special design. You can find more information on water resistant features here.
Built-in elements are characterised by the overall width and height dimensions of the section to be built in. The dimensions of the opening in which these structures are installed must always be 10 mm larger than the louvre dimensions. You can install them on window too. For night cooling it is the perfect solution: liveable temperatures, future-oriented and subtly integrated into your interior and façade. Night cooling louvres offer a durable and energy-efficient alternative. The system is insect and burglar resistant. Moreover, models with acoustic damping are available too.
With this architectural solution, we can get a lot of functions that protect the building from external influences and a unique decorative wall. You can even hide a garage door or a gate with its help. Those who like modern style will surely love the Renson Linius ventilation system.
Follow us on Facebookon and Instagramon!
Continuous louvre system references
RENSON LINIUS homlokzati szellőzőlamella L120 típus beépítve
RENSON LINIUS homlokzati szellőzőlamella L175 típus beépítve
RENSON LINIUS homlokzati szellőzőlamella L166 típus beépítve
RENSON LINIUS homlokzati szellőzőlamella L160 típus beépítve
RENSON LINIUS homlokzati szellőzőlamella L150 típus beépítve
RENSON LINIUS homlokzati szellőzőlamella L150 beépítve
RENSON LINIUS homlokzati szellőzőlamella L033 beépítve
RENSON LINIUS homlokzati szellőzőlamella L170 típus beépítve

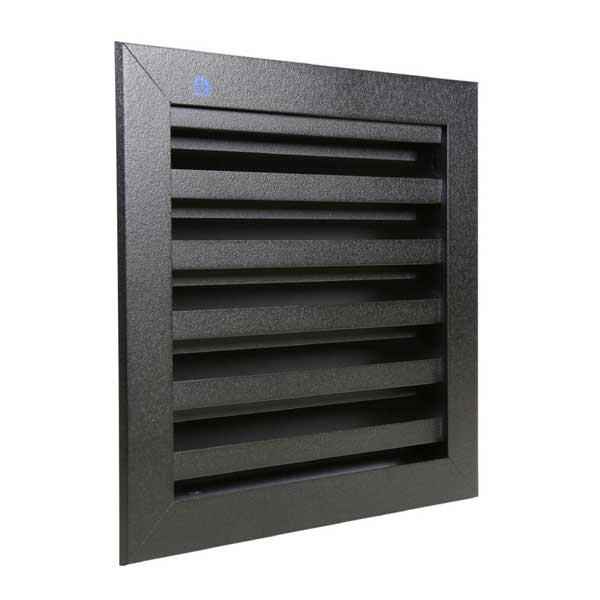

Ventilation grilles
Ventilation grilles helps to keep your home healthy by allowing fresh outdoor air to enter. Ventilation louvres guarantee proper air circulation indoor.

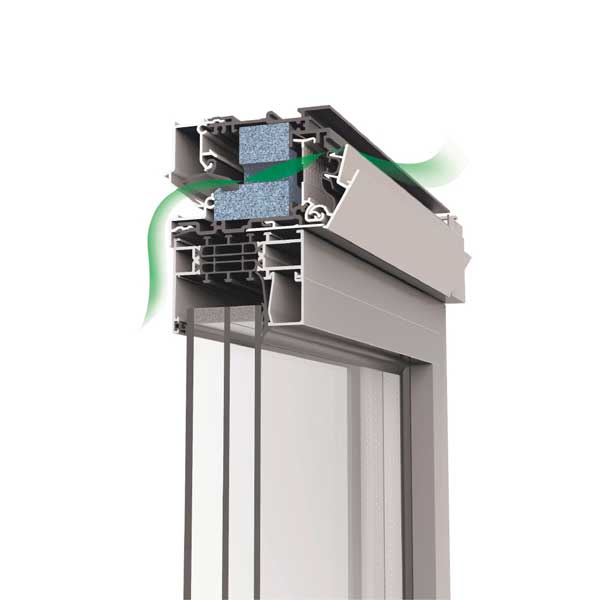

Window vents
